Overhead Traction

This product will be supplied by AVT Lifts

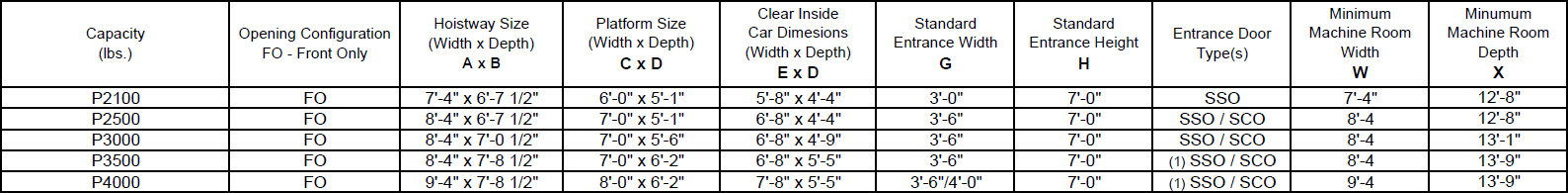

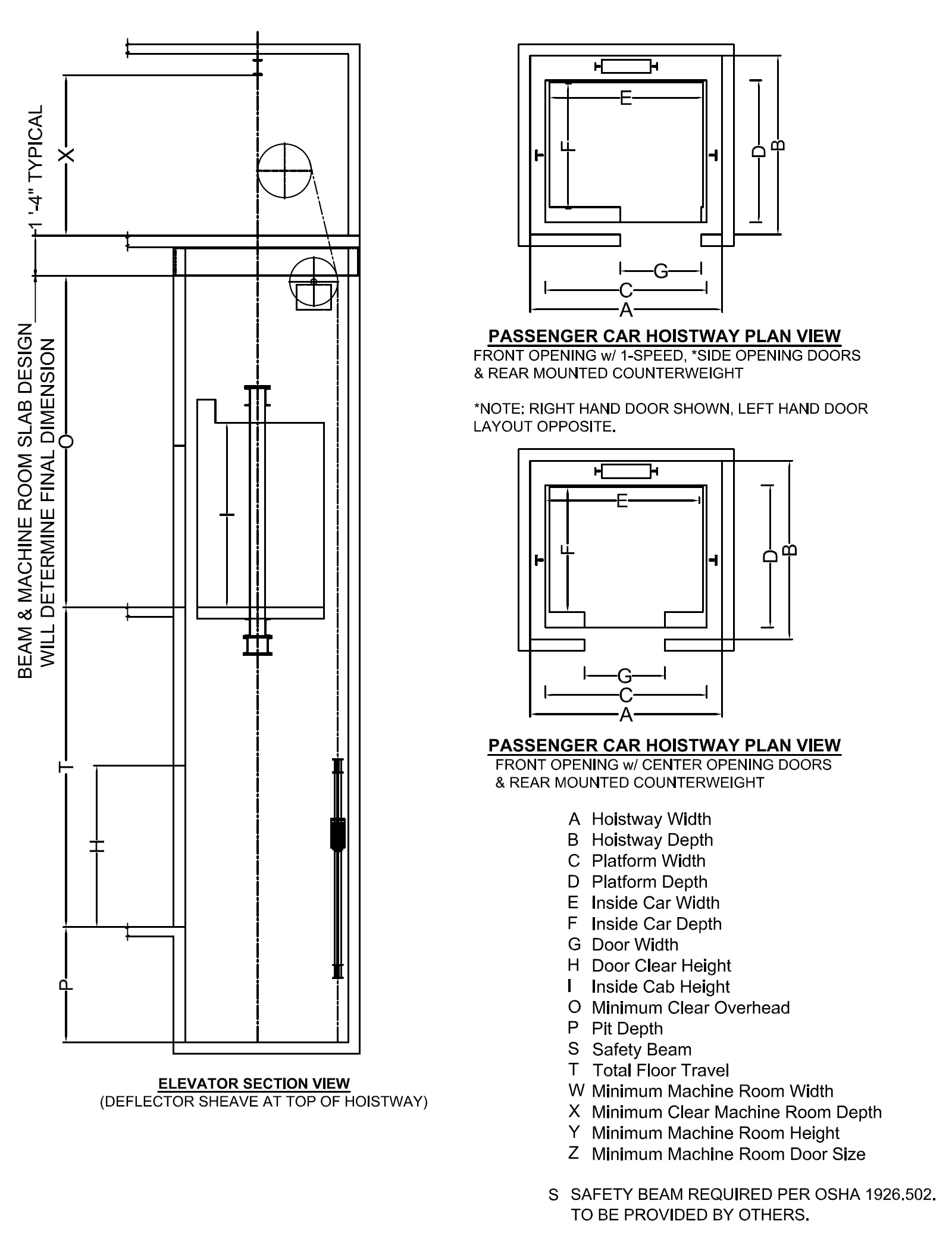

OVERHEAD GEARED TRACTION PASSENGER CAR ELEVATORS, FRONT OPENING DOORS w/ REAR COUNTERWEIGHT

  • Capacity: 2100 - 4000 LBS
  • Maximum Floor Travel: 300'-0"
  • Car Speed: 150, 200 & 350 FPM
Note:
Dimensions shown on chart above are for standard non seismic zone only per ASME A17.1 amd CSA B44. For seismic zone 2+ add 4" to hoistway width. To improve installation efficiencies it is recommended to increase the hoistway widths 2".
Door Types:
SSO - Single-Speed, Side Opening, (Right-Hand or Left-Hand)
SCO - Single-Speed, Center-Opening
P Minimum Pit Depths:
150 & 200 fpm: 5'-0"
350 fpm: 5'-6"
O *Minimum Clear Ovehead:
(with standard cab height)
150 fpm: 15'-6"
200 fpm: 16'-0"
350 fpm: 16'-10"
*Clear overhead is to be mesured from the upper floor level finish floor height to the underside of the safety/hoisting beam.
For clear ovehead requirments in areas enforcing pre ASME A17.1- 2008 Safety Code for Elevators contact AVT Lifts Sales Department for details.
I Inside clear cab height 7'-6" from finish floor to suspended drop ceiling on standard MRL Traction elevaors with standard 8'-0" overall high cab. Optional cabs with increased heights are availblle, however the clear overhead heights must be increased. Contact AVT Lifts Sales Department for details.
2100 lb. capacity elevators are not available with Single-Speed-Center-Opening, (SCO), doors.
3500 lb. capacity elevators must have 3'-6" wide Single-Speed, Side-Opening, (SSO), to meet 84" strecther IBC Code requiement.
S A safey/hoisting beam is required by OSHA 1926.502. Safety/hoisting beam is to be provided by others.
Y Minimum 7'-0" clear height from machine room floor to bottom of safety hoisting beam for standard machine arrangement with deflector sheave at top of hoistway.

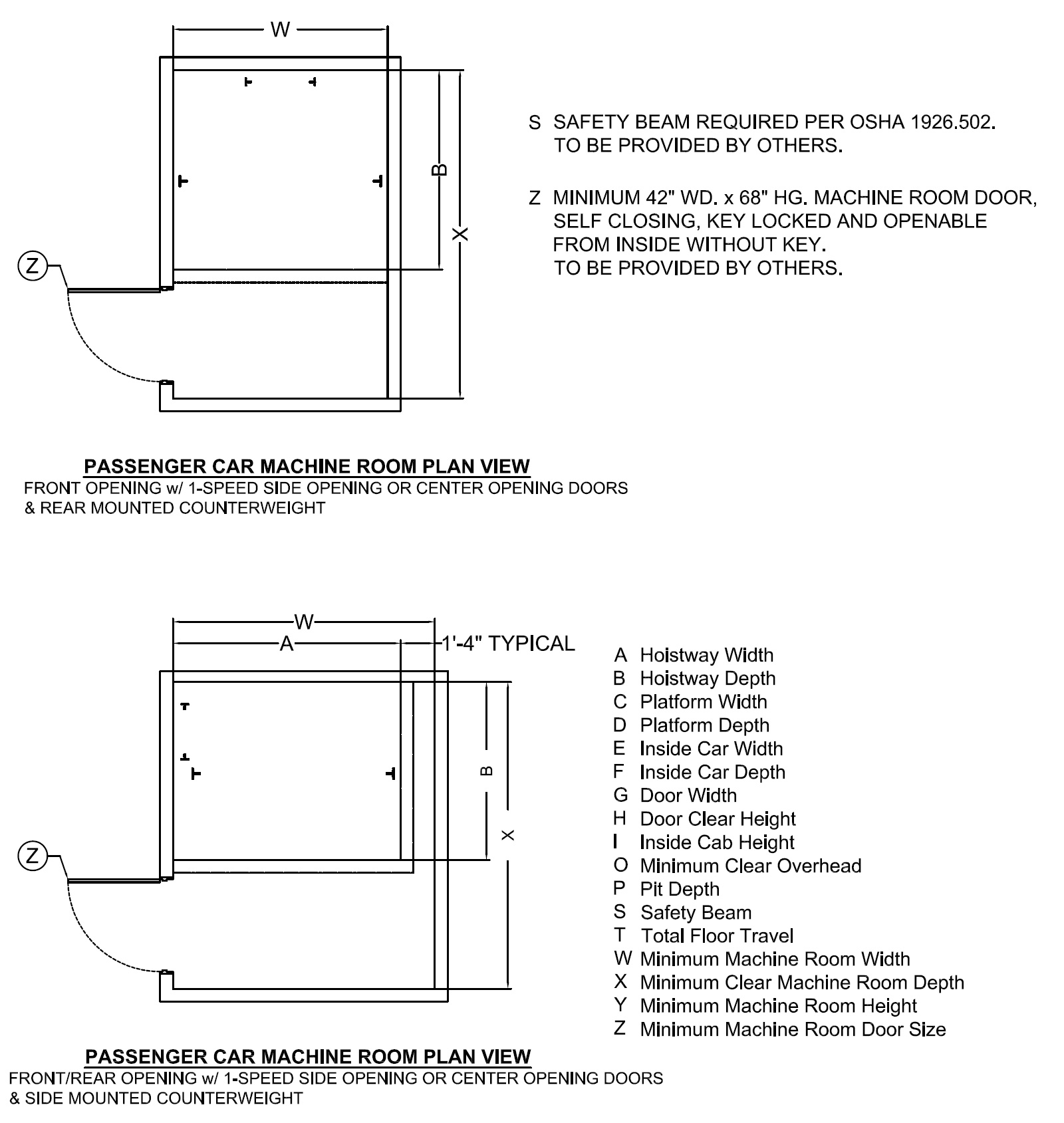

Z Standard machine room door to be minimum of 3'-6" wide x 6'-8" high, key-locked, self-closing type and be openable from the inside without key. Machine room door is to be provided by others

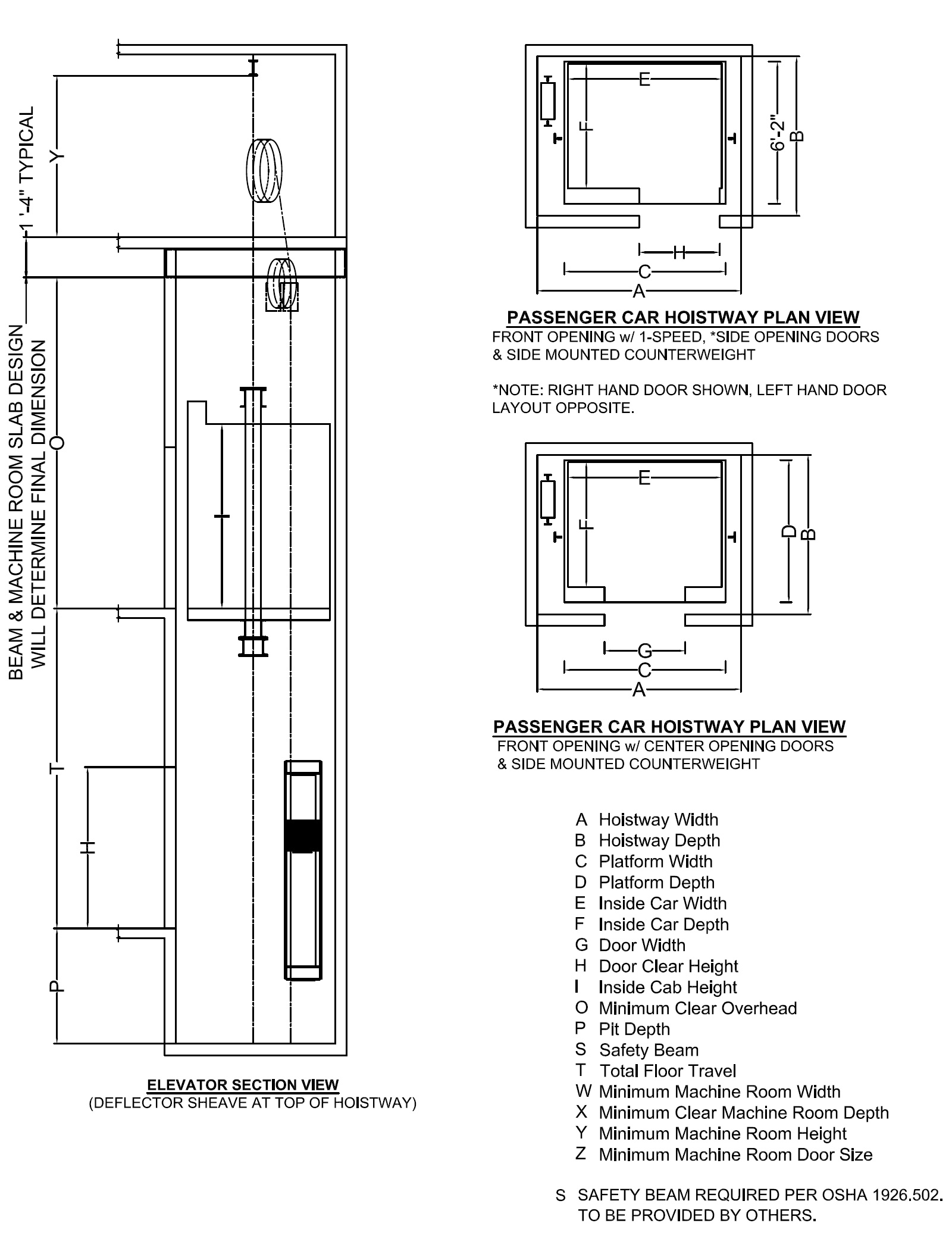

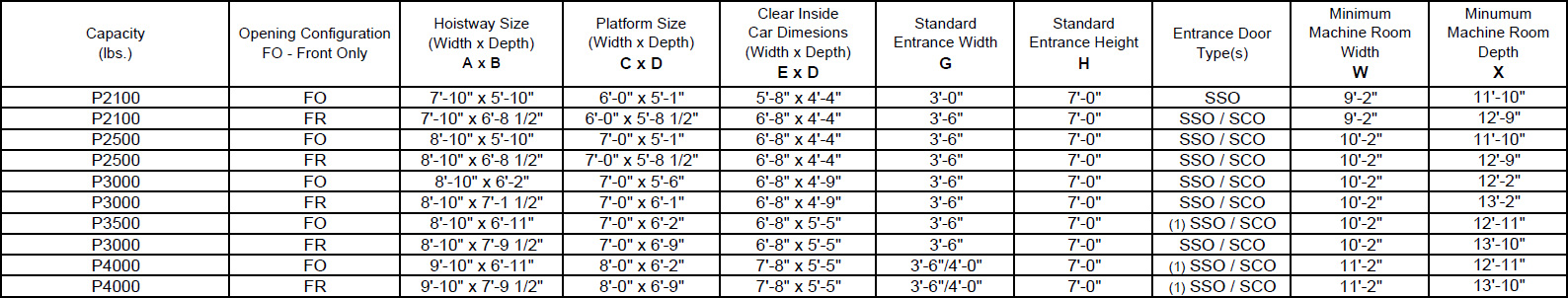

OVERHEAD GEARED TRACTION PASSENGER CAR ELEVATORS, FRONT OPENING & FRONT/REAR OPENING DOORS w/ SIDE COUNTERWEIGHT

  • Capacity: 2100 - 4000 LBS
  • Maximum Floor Travel: 300'-0"
  • Car Speed: 150, 200 & 350 FPM
Note:
Dimensions shown on chart above are for standard non seismic zone only per ASME A17.1 amd CSA B44. For seismic zone 2+ add 4" to hoistway width. To improve installation efficiencies it is recommended to increase the hoistway widths 2".
Door Types:
SSO - Single-Speed, Side Opening, (Right-Hand or Left-Hand)
SCO - Single-Speed, Center-Opening
P Minimum Pit Depths:
150 & 200 fpm: 5'-0"
350 fpm: 5'-6"
O *Minimum Clear Ovehead:
(with standard cab height)
150 fpm: 15'-6"
200 fpm: 16'-0"
350 fpm: 16'-10"
*Clear overhead is to be mesured from the upper floor level finish floor height to the underside of the safety/hoisting beam.
For clear ovehead requirments in areas enforcing pre ASME A17.1- 2008 Safety Code for Elevators contact AVT Lifts Sales Department for details.
I Inside clear cab height 7'-6" from finish floor to suspended drop ceiling on standard MRL Traction elevaors with standard 8'-0" overall high cab. Optional cabs with increased heights are availblle, however the clear overhead heights must be increased. Contact AVT Lifts Sales Department for details.
2100 lb. capacity elevators are not available with Single-Speed-Center-Opening, (SCO), doors.
3500 lb. capacity elevators must have 3'-6" wide Single-Speed, Side-Opening, (SSO), to meet 84" strecther IBC Code requiement.
S A safey/hoisting beam is required by OSHA 1926.502. Safety/hoisting beam is to be provided by others.
Y Minimum 7'-0" clear height from machine room floor to bottom of safety hoisting beam for standard machine arrangement with deflector sheave at top of hoistway.
Z Standard machine room door to be minimum of 3'-6" wide x 6'-8" high, key-locked, self-closing type and be openable from the inside without key. Machine room door is to be provided by others

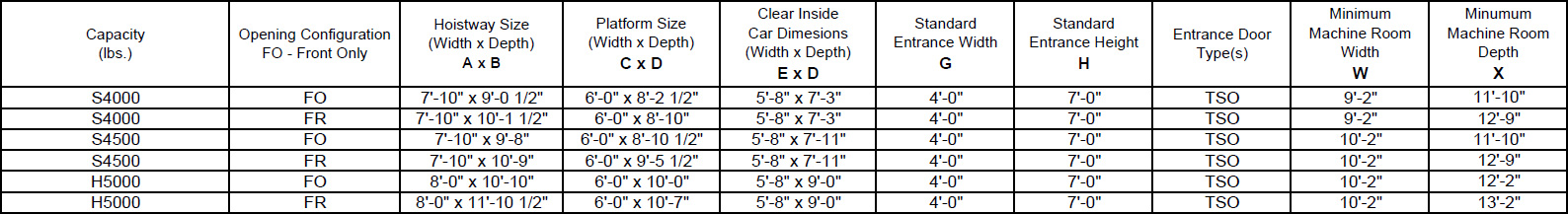

OVERHEAD GEARED TRACTION SERVICE/HOSPITAL CAR ELEVATORS, FRONT OPENING & FRONT/REAR OPENING DOORS w/ SIDE COUNTERWEIGHT

  • Capacity: 2100 - 4000 LBS
  • Maximum Floor Travel: 300'-0"
  • Car Speed: 150, 200 & 350 FPM
Note:
Dimensions shown on chart above are for standard non seismic zone only per ASME A17.1 amd CSA B44. For seismic zone 2+ add 4" to hoistway width. To improve installation efficiencies it is recommended to increase the hoistway widths 2".
Door Types:
TSO - Two-Speed, Side Opening, (Right-Hand or Left-Hand)
P Minimum Pit Depths:
150 & 200 fpm: 5'-0"
350 fpm: 5'-6"
O *Minimum Clear Ovehead:
(with standard cab height)
150 fpm: 15'-6"
200 fpm: 16'-0"
350 fpm: 16'-10"
*Clear overhead is to be mesured from the upper floor level finish floor height to the underside of the safety/hoisting beam.
For clear ovehead requirments in areas enforcing pre ASME A17.1- 2008 Safety Code for Elevators contact AVT Lifts Sales Department for details.
I Inside clear cab height 7'-6" from finish floor to suspended drop ceiling on standard MRL Traction elevaors with standard 8'-0" overall high cab. Optional cabs with increased heights are availblle, however the clear overhead heights must be increased. Contact AVT Lifts Sales Department for details.
2100 lb. capacity elevators are not available with Single-Speed-Center-Opening, (SCO), doors.
3500 lb. capacity elevators must have 3'-6" wide Single-Speed, Side-Opening, (SSO), to meet 84" strecther IBC Code requiement.
S A safey/hoisting beam is required by OSHA 1926.502. Safety/hoisting beam is to be provided by others.
Y Minimum 7'-0" clear height from machine room floor to bottom of safety hoisting beam for standard machine arrangement with deflector sheave at top of hoistway.
Z Standard machine room door to be minimum of 3'-6" wide x 6'-8" high, key-locked, self-closing type and be openable from the inside without key. Machine room door is to be provided by others
