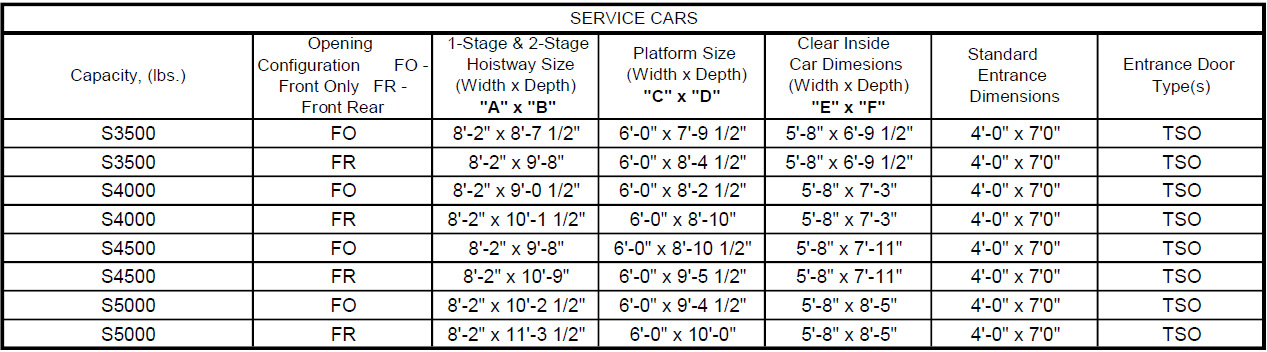

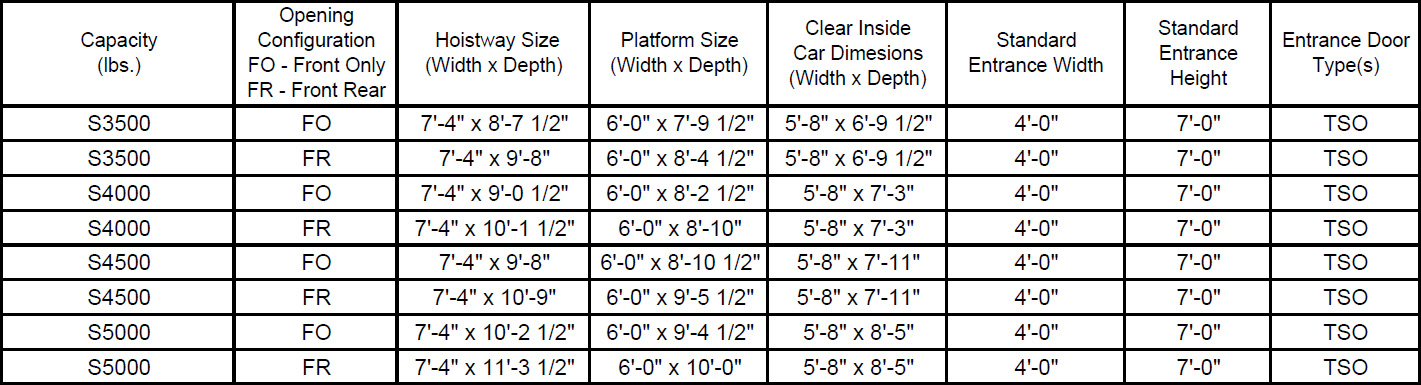

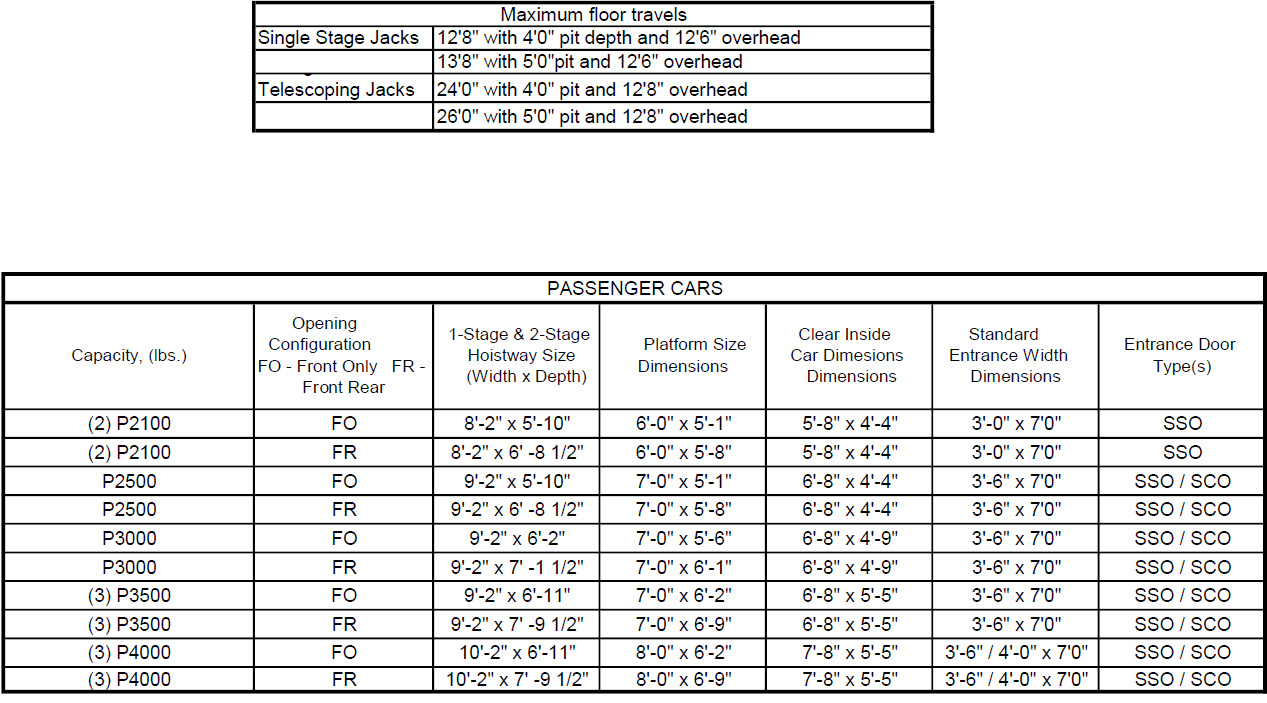

IN-GROUND JACK STANDARD SERVICE CAR ELEVATORS

  • Capacity: LBS
  • Maximum Floor Travel: 60'-0"
    (Standard Single-Stage In-Ground Jacks)
  • Car Speed: 80, 100, 125 & 150 FPM
Note:
Dimensions shown on chart above are for standad non seismic zone only per ASME A17.1 amd CSA B44. For seismic zone 2+ add 2" to hoistway width.
Minimum Pit Depths:
4'-0"
Minimum Clear Ovehead:
(w/8'-0" standard cab height)
Up to 100 fpm (12'-1")
Over 100 fpm (12'-4")
Note:
Inside clear cab height of 7'-6" from finish floor to suspended drop ceiling on standard hydraulic elevator 8'-0" overall high cab. Optional cabs with extended heights are availblle, however the clear overhead heights must be increased. Contact AVT Lifts Sales Department for details.
A safey/hoisting beam, which is to be provided and installed by others in the location designated on the AVT Lifts elevator shop drawings is required by OSHA 1926.502.Clear overhead is to be mesured from the upper floor level finish floor height to the underside of the safety/hoisting beam.

Machine Room Sizing for In-Ground Jack Hydraulic Elevators

Single Car Elevator:
Submersible Power Unit: 7'-0" x 7'-0" w/ Minimum 3'-6' Wide x 6'-8" High Door
Dry Power Unit: 10'-0" x 6'-0" w/ Minimum 4'-0" Wide x 6'-8" High Door
Dual Car Elevator:
Submersible Power Unit: 10'-6" x 10'-6" w/ Minimum 3'-6' Wide x 6'-8" High Door
Dry Power Unit: 15'-0" x 12'-0" w/ Minimum 4'-0" Wide x 6'-8" High Door
Note:
All machine rooms must have a clear floor to ceiling height of 7'-6". Machine room temperture range to be a 32 F minimum - 100 F maximum. The non-condensing relative humidity levels should range between 10-90%.

AVT LIFTS HYDRAULIC MRL "SPACE-SAVER"

  • No separate machine/control room required,
    saves valuable building space
  • Utilizes VVVF drive
    Environmentally friendly, up to 65% energy savings with smaller motors, lower starting currents, and power regeneration.
  • Better ride quality
    smoother operation
    improved landing accuracy
    quieter operation
  • Ideal for high useage applications
    50% less heat build up
    eliminates the need for oil coolers
    no start delay
  • fits in standard hoistway sizes and pit depths

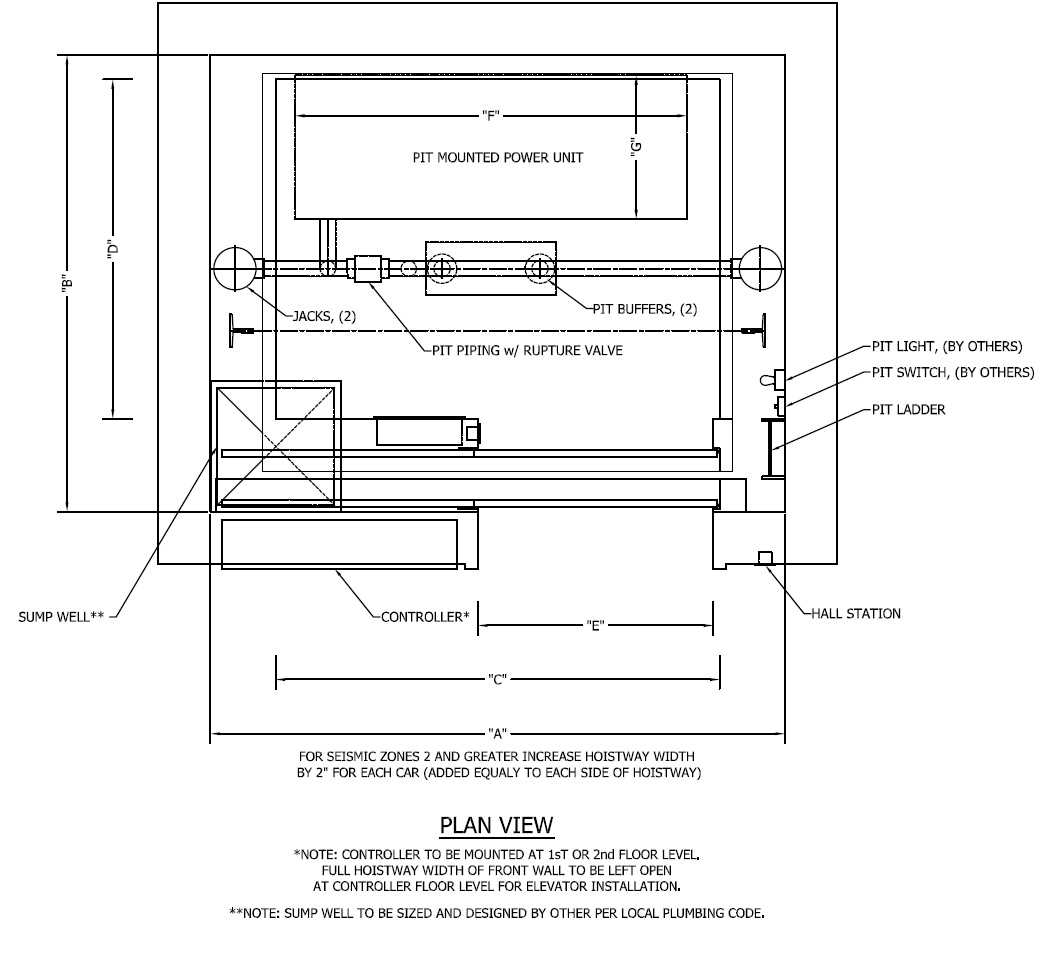

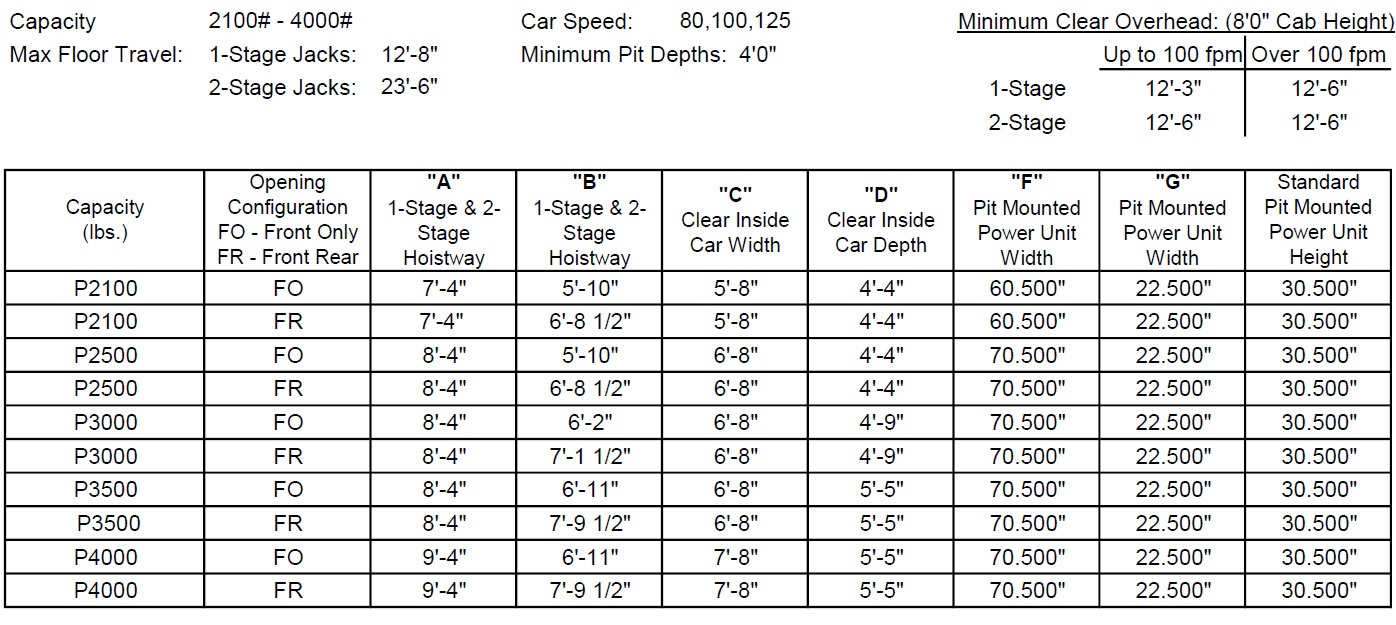

AVT LIFTS "SPACE-SAVE" MRL PASSENGER CAR HYDRAULIC ELEVATORS

with pit mounted power unit and Controller integral to hoistway

Dimensions shown on chart above are for standad non seismic zone only per ASME A17.1 and CSA B44. For seismic zone 2+ add 2" to hoistway width.

Extended floor travels are availble, contact AVT Lifts Sales Department for job specific requirements

Entrances
SSSO - single speed side opening; CO - center opening
2100#
3'0 x 7'0" SSSO. Not available in center opening
2500# - 3500#
3'6" x 7'0" SSSO or CO. NOTE: must be side opening to meet IBC stretcher requirements
4000#
3'6" or 4'0" x 7'0" SSSO or CO. NOTE: CO doors must be 4'0" to meet IBC stretcher requirements
NOTE:

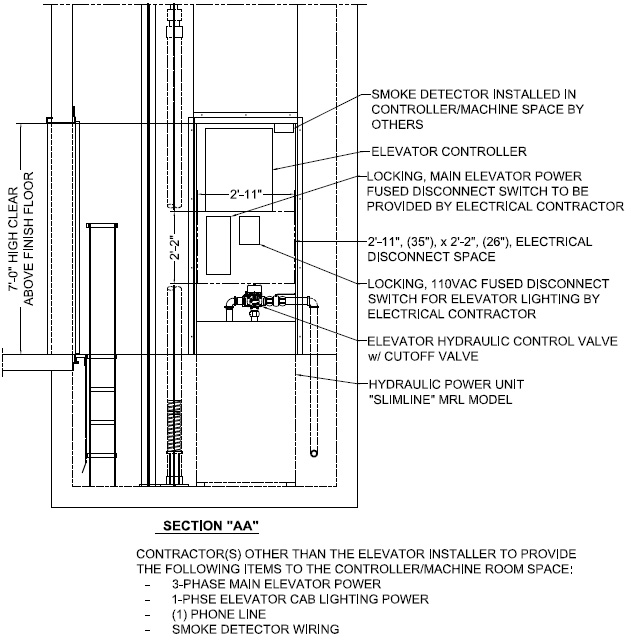

POWER UNIT/CONTROLLER CLOSET PER CODE IS A MACHINE ROOM AND MUST MEET THE SAME ASME A17-1 ELEVATOR SAFETY CODE REQUIREMENTS FOR A MACHINE ROOM/CONTROLLER SPACE. THIS INCLUDES THE REQUIREMENT FOR AN ACCESS DOOR PER ASME A17-1-2013, 2.7.3.4.6, WHICH STATES; "ACCESS OPENINGS LOCATED IN THE MACHINERY SPACE FLOOR, SECONDARY LEVEL FLOOR, CONTROL SPACE FLOOR, OR CONTROL ROOM FLOOR WITH ACCESS INTO HOISTWAY SHALL BE PROVIDED WITH DOORS THAT SHALL BE KEPT CLOSED AND LOCKED. KEY TO ACCESS DOORS SHALL BE GROUP 1 SECURITY. IN ADDITION ON BUILDINGS WITH CODES REQUIRING FIRE-RESISTANT CONSTRUCTION ASME-A17.1-2013, 2.7.1.1.2 STATES; "OPENINGS IN MACHINE/CONTROL ROOM SPACES SHALL BE PROTECTED BY ACCESS DOORS HAVING A FIRE PROTECTION RATING CONFORMING TO THE REQUIREMENTS OF THE BUILDING CODE".

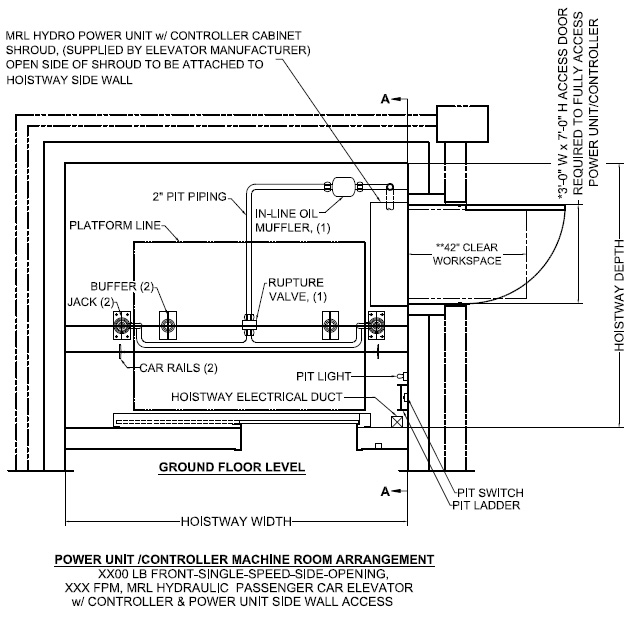

AVT LIFTS HYDRAULIC MRL "SLIMLINE" MODEL R3 with Dual Holeless Jacks

NOTE:
Standard overall cab height is 8'0" with 7'6" clear to drop ceiling; optional cab heights are available
Contoller/Power Unit closet access doorl must be a minimum of 3'-0" Wide x 7'-0" high. Door to be provided by others.
Controller space temperture range to be 32 F minimum - 100 F maximum with non-condensing relative humidity range of 10-90%.
Dimensions shown on chart above are for standad non seismic zone only per ASME A17.1 amd CSA B44; for seismic zones 2 and above, add 2" to hoistway width.
Door Types
SSO - Single-Speed, Side Opening, (Right-Hand or Left-Hand)
SCO - Single-Speed, Center-Opening
TSO - Two-Speed, Side Opening, (Right-hand or Left-hand)
2100 lb. capacity elevators are not available with Single-Speed-Center-Opening, (SCO), doors.
3500 lb. capacity elevators must have 3'-6" wide Single-Speed, Side-Opening, (SSO), to meet 84" strecther IBC Code requiement.
A 4000 lb. capacity elevators must have eith a 4'-0" Center-Opening, (SCO) or 3'-6" wide Side-Opening, (SSO), doors to meet the 84" strecther IBC code requirement.
Safey/hoisting beam provided and installed by others in the location designated on the AVT Lifts elevator shop drawings is required by OSHA 1926.502.Clear overhead is to be mesured from the upper floor level finish floor height to the underside of the safety/hoisting beam.
